HELI G series internal combustion counterbalanced forklift truck 42-46t

FOB Reference Price:Get Latest Price
US $500,000-550,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
HELI
Model Number:
CPCD420/CPCD460
Type:
IC forklift trouk
Power Souce:
Diesel Engine
Rated Loading Capacity:
42000/46000kg
Max. Lifting Height:
4000mm
Min. Lifting Height:
0
Fork Length:
2440mm
Fork Width:
3000mm
Overall Dimensions:
10375*4120*4850
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product Name:
Diesel Forklift Truck
Color:
Red
Engine:
VOLVO
Transmission box:
DANA
Drive axle:
KESSLER
Mast:
2 Stage
attachments:
side shifting fork positioner
Tire:
Pneumatic Tire
Weight:
56000/58600kg
Load center distance:
1200mm
Supply Ability
Supply Ability:
100 Unit/Units per Year
Packaging & Delivery
Packaging Details
none
Port
shanghai/nanjing
Lead Time :
45days


Product Feature

The vehicles are designed by professional design company which is famous in Europe, and the vehicles conform to the requirements of EN1459, DIN15018 and ISO WD 22915-12.

The latest VOLOV diesel (TAD1151VE) engine which has advanced Engine Management System with CAN-BUS and conforms to the requirements of EU stage III is adopted. The turn off delay function can extend the engine’s service life.

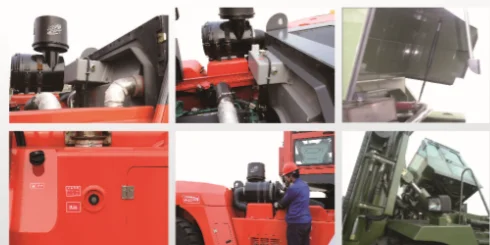

Intake system with cyclone-type air filter and main filter based two filtration function, can ensure the precision components of the engine works properly. All the engine accessories including air filter and muffler adopt the Donaldson’s product (U.S.).

The latest TE27 electro-hydraulic control automatic gearbox of DANA company (U.S.) is adopted. Controlling with the CAN-BUS and adopts proportional valve technology, can reduce the impact when shifting and reversing , and improve the quality and reliability.

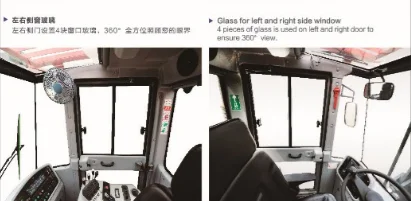

The drive seat in the drive cab adopts full suspension and vibration proof structure and can be adjusted in all directions. Each operation pedals’ and handles’ position are designed according to the principle of Ergonomics and  can greatly reduce the labor intensity. High-mounted cab provided excellent all-round visibility. Air conditioner is standard. And the sliding type bonnet facilitates the maintenance and repair.
